Nozzles

1575

1 ½” Combination fog nozzle.

Delivers straight stream to variable spray pattern. Constructed of polycarbonate and precision molded from the latest developments in the industry. Ideal for industrial and commercial installations, as well as small fire companies. No scrap value so it stays on the job.

Color: Red, Chrome Plated or Refinery Blue.
Available threads: NHT (NST), NPSH (SIPT), NYFD,
NY Corp., Chicago (FD) Pacific Coast, BSP.
Height: 4⅝”
Gallonage: 51 GPM at 50 PSI, 75 GPM at 100 PSI

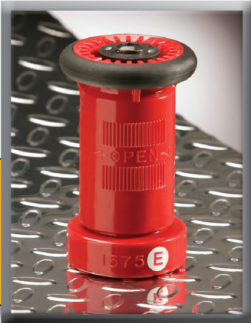

1575E

Same as model 1575, except there is no straight stream and it opens on a 30 degree fog pattern. Designed for use on electric equipment and switching panels. Tested to 250,000 volts at 10 feet.

Height: 45/8″
Available threads: NHT (NST), NPSH (SIPT), NYFD,
NY Corp., Chicago (FD) Pacific Coast, BSP.
Gallonage: 51 GPM at 50 PSI
75 GPM at 100 PSI

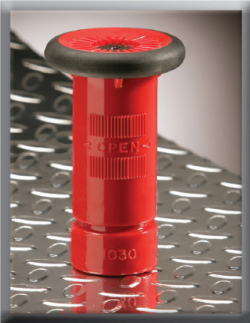

1030

1″ & ¾” Combination fog nozzle.

Delivers straight stream to variable spray pattern. Designed for booster lines and small Diameter Hose.

Standard threads: 1″: – NHT (NST), NPSH (SIPT), BSP
¾” – GHT, NPSH, BSP
Gallonage: 1″ – 22 GPM
¾”- 8 GPM

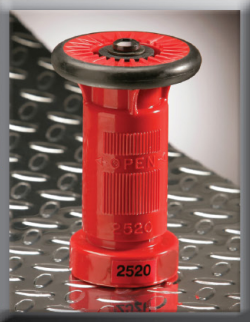

2520

(1 ½” and 2″) 150 GPM (US)

1 ½” or 2″ Combination stream, fog, shut-off nozzle. Delivers straight stream and adjusts to variable fog pattern. Same as #2520 2 12″ except the attaching threads are 1 ½” or 2″. Same as #2520 2 ½” except the intermediate piece (adapter) is not included.

Available threads:
1 ½”: NHT (NST), NPSH (SIPT), NY (FD), BSP and others.
2″: NPSH (SIPT)
Height: 5 ⅜”
Gallonage: 150 GPM (US)

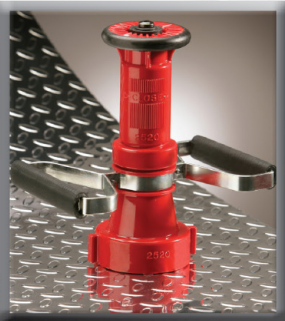

2520

2 ½” Combination stream, fog, shut-off nozzle

Delivers straight stream and adjusts to variable fog pattern. Moulded from polycarbonate with 2 ½” attaching threads. Ideal for in-plant applications when large diameter hose is in use.

Available threads: NHT(NST), NY Corp., NY (FD),
Chicago (FD), CSA (5 x 3 ⅛”), B.C. & A.M.A. (8 x 3),
Nova Scotia Std. (5 x 3 ¼”)
Height: 9″
Gallonage: 150 GPM (US)

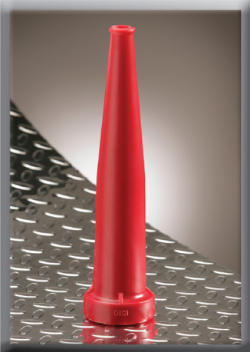

1510

1 ½” x 10″ (1/2″Tip) straight stream nozzle.

Precision molded to give a smooth inner surface and less friction loss.

Available Threads: NHT (NST), NPSH (SIPТ),
NY (FD), Chicago (FD), BSP and Others

1550

1 ½”Twin-tip, Straight Stream Forestry Nozzle

The 1550 has the same moulded high strength features as other proven U.F.S. nozzles. Solid one-piece reversible twin tips (P/N1550-T) 1/4″ &3/8″.

Available Threads: NHT (NST), NPSH, BSP, (SIPT)
Nozzle Bore (w/o tips): ½”
O/A Length (c/w tip): 9″
Tip Length: 2 ⅜”
Weight: 5 oz.

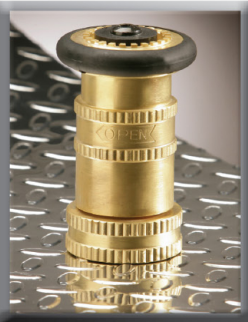

1675

1 ½” forged bronze Combination fog nozzle.

Delivers straight stream to variable spray pattern.

Available threads: NHT (NST), NPSH (SIPT), BSP
Height: 4 ⅝”
Weight: 2 lbs.
Gallonage: 51 GPM @ 50 PSI
75 GPM @ 100 PSI
